Valve Cover Baffle 101
| The 2.2L/2.5L Turbo valvecover/PVC baffle is only RTV'ed around it's perimeter from the factory. The following is instruction on how to properly attach the baffle to reduce oil in your air-box. |

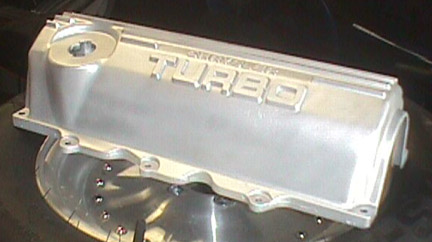

| Start this project by removing and cleaning your valvecover |  |
| Remove the 2 -10mm hex bolts that retain the baffle |  |

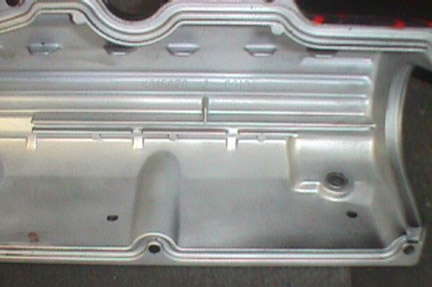

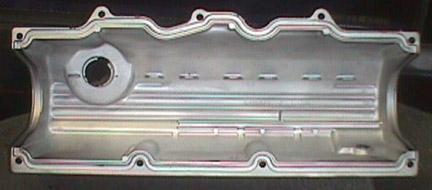

| Remove all old RTV and clean the Baffle mounting area |  |

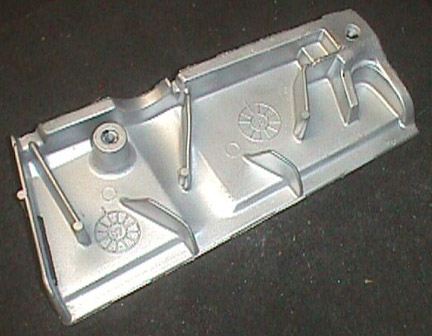

| Remove RTV and clean Baffle - Note the lack of RTV on the inside fins |  |

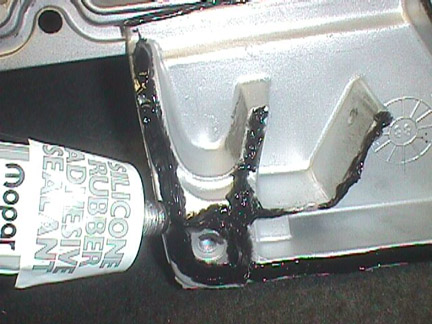

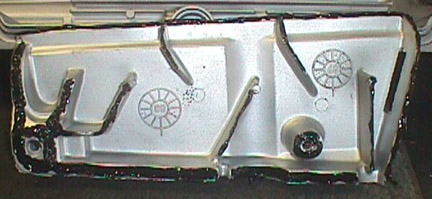

| Apply RTV to the perimeter and fins of the Baffle that contact the valvecover |  |
| CAUTION! - DO NOT RTV over the little oil drainback divots in on the perimeter |  |

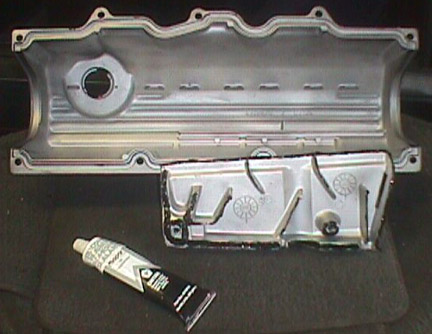

| Once Cleaned and RTV'ed, you're ready for installation |  |

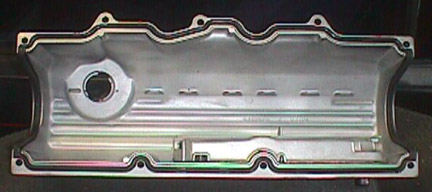

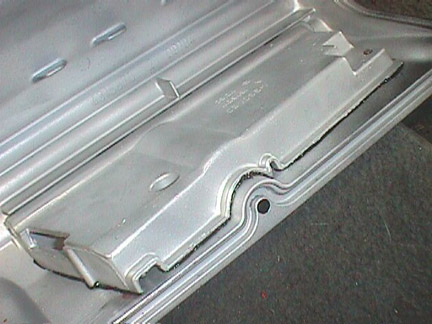

| Install the Baffle trying to set it down straight, as to not get RTV everywhere |  |
| Let RTV Vulcanize for recommended time on tube |  |
