JT's 1987 CSX #751 Clone Project
|
Step
6: Clutch Swap
|
|||||
|
The Clone was put together with a used Turbo I clutch, which worked ok until it got soaked with oil when the turbo oil supply line leaked on it. Conveniently at about the same time, I was aproached by our friends at MM Racing to use the Clone to test a prototype Turbo Dodge pressure plate from ACT. I ordered a Clutchnet 4-puck disk to go with it. Below are some pictures of the swap. Click on pictures to enlarge, use your browser back to return |
|||||
|
New
Parts
|
|||||
|

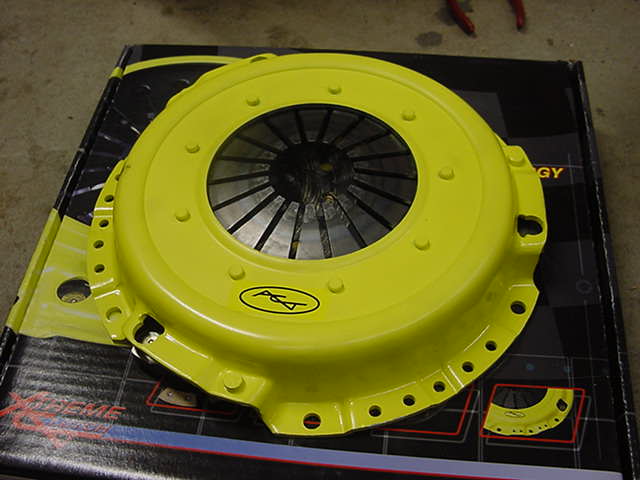

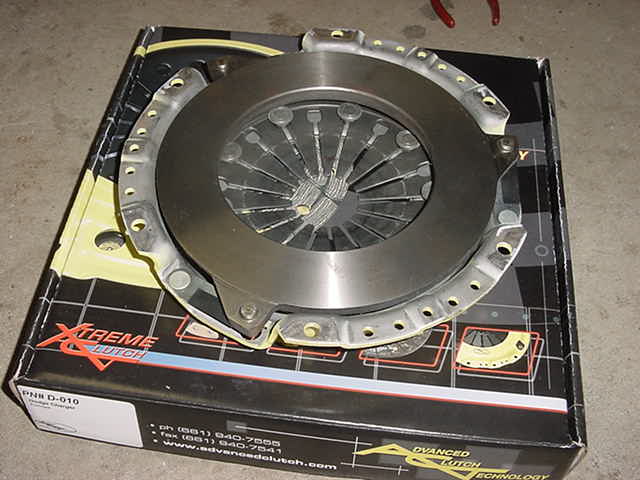

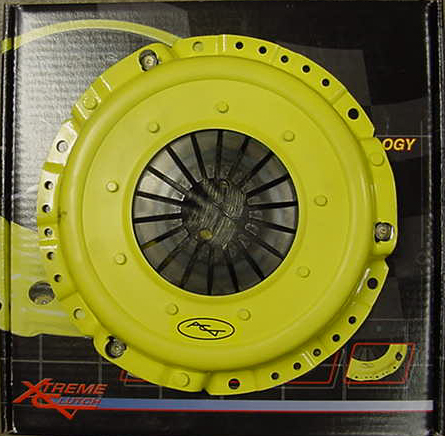

Pressure
plate
|
Sturdy
looking
|
Nice
finish
|

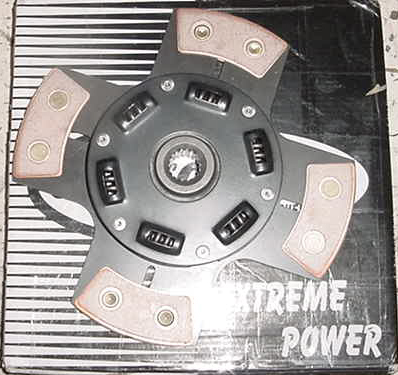

Clutchnet
disk
|
Disk
& p-plate
|

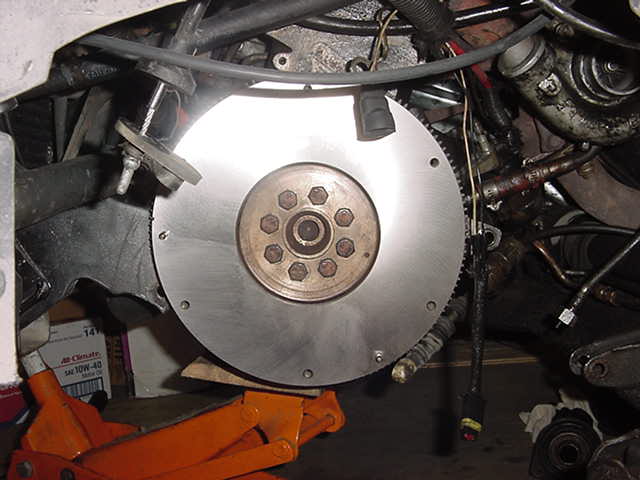

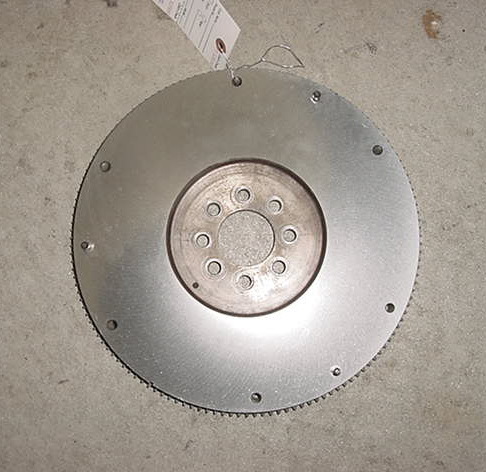

Cut
flywheel
|
 |
 |
 |
 |
 |
 |
|
Release
bearing
|
Wire
mounts
|

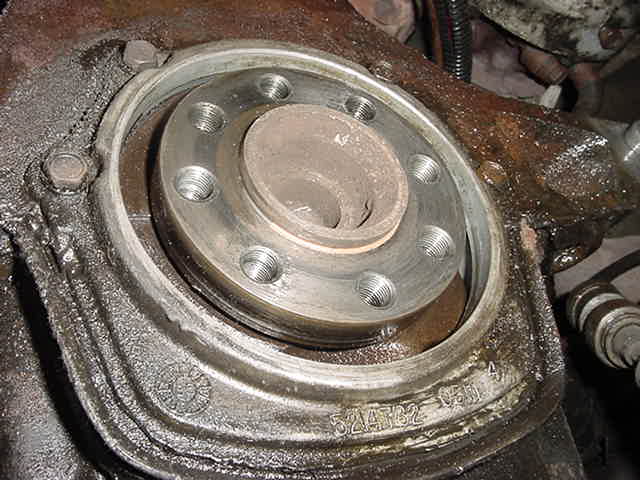

Rear
main
|
|||
 |
 |
 |
|||
|
Removal
|
|||||
|

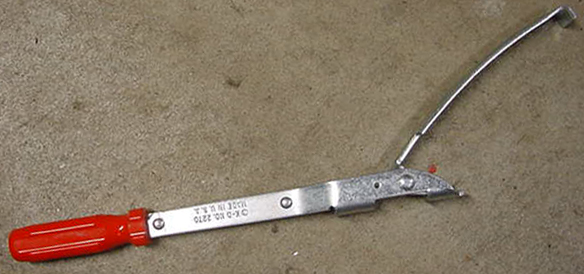

Flywheel
tool
|

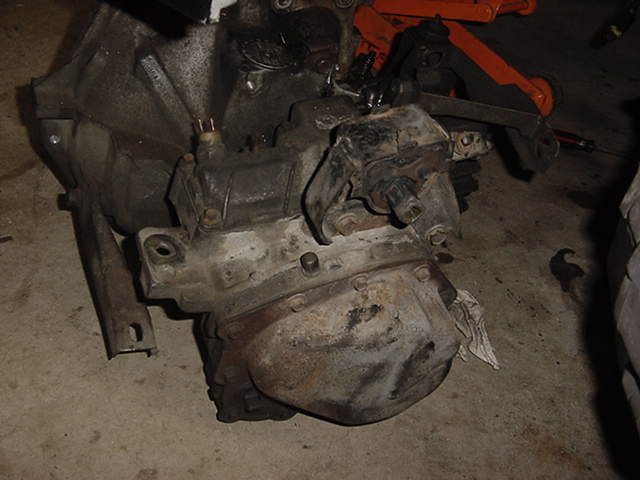

A-520
out
|

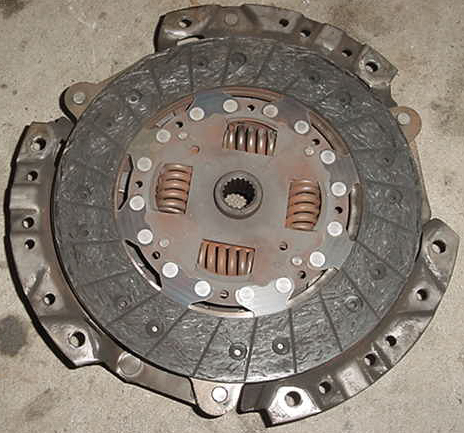

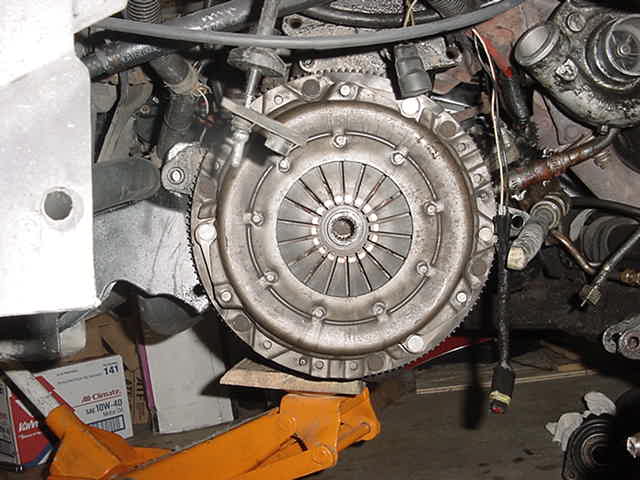

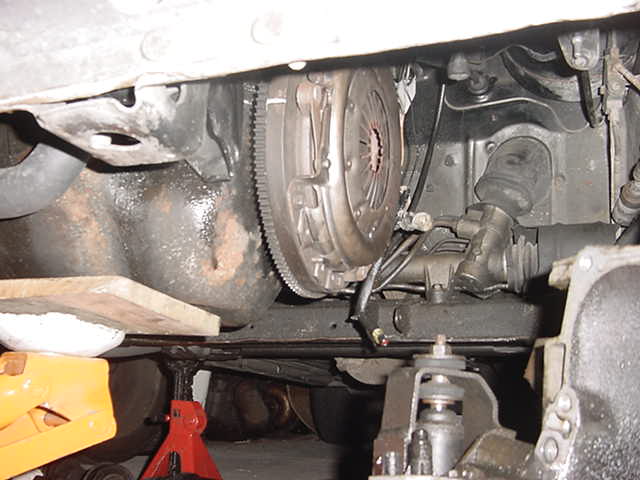

Old
clutch
|
Old
clutch
|

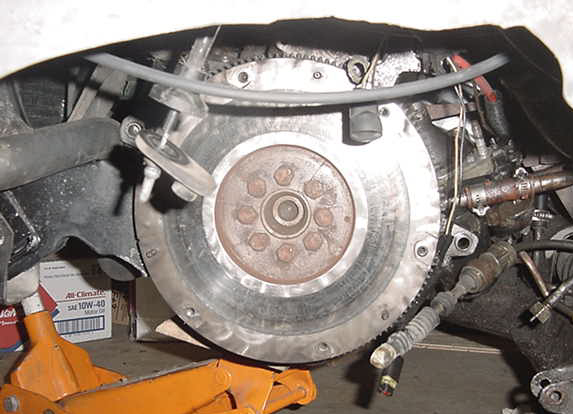

Hazed
flywheel
|

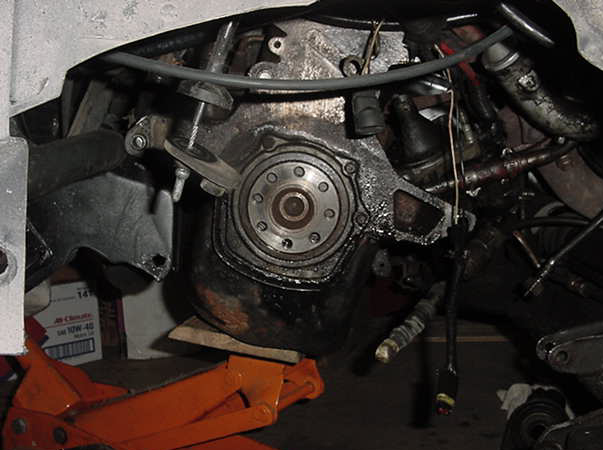

Flywheel
out
|
 |
 |
 |
 |
 |
 |
|
Old
clutch out
|
Hazed

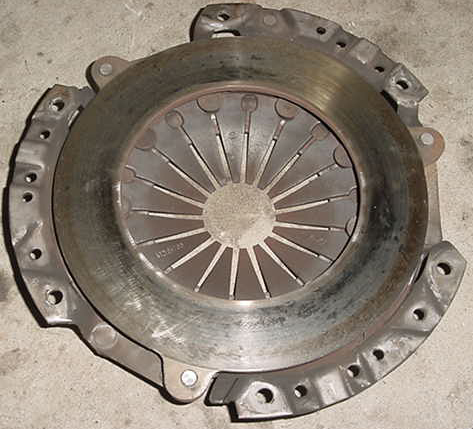

p-plate
|

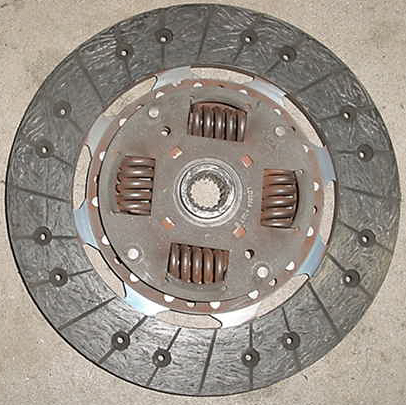

Worn
disk
|

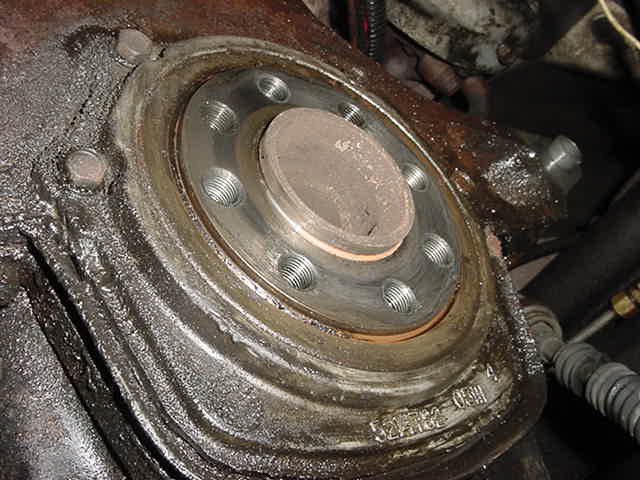

Old
rear main
|

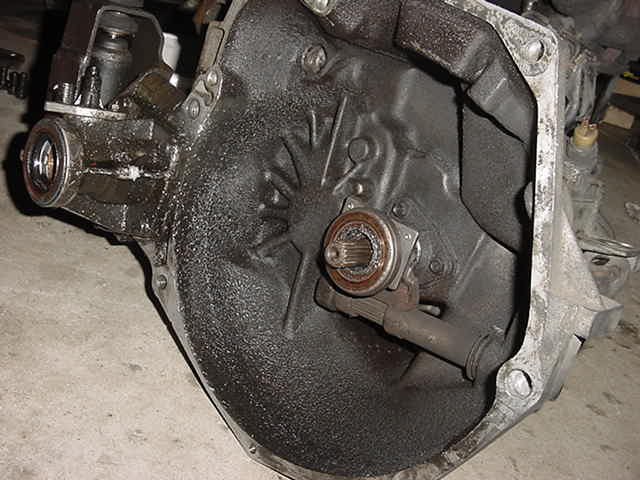

Removed
|
|
 |
 |
 |
 |
 |
|
|

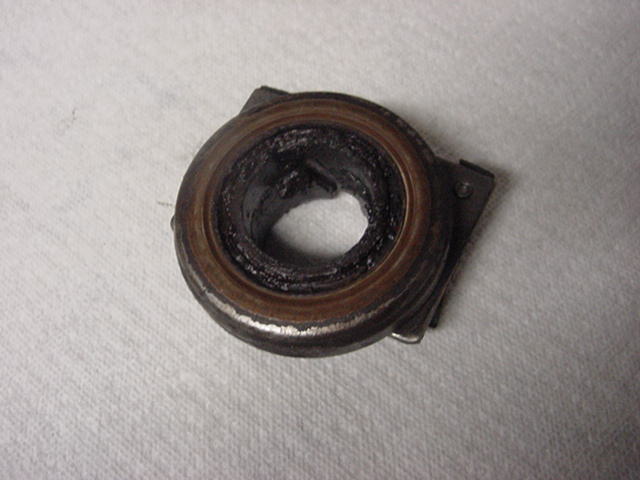

Old
Rel.Bearing
|
Removed
|
||||
 |
 |
||||
|
Installation
|
|||||
|

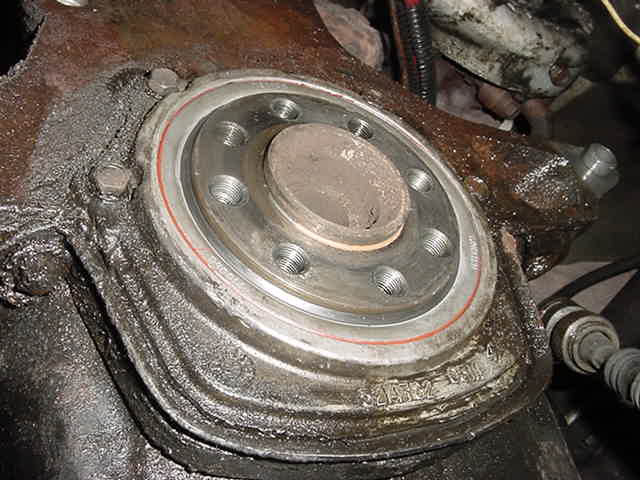

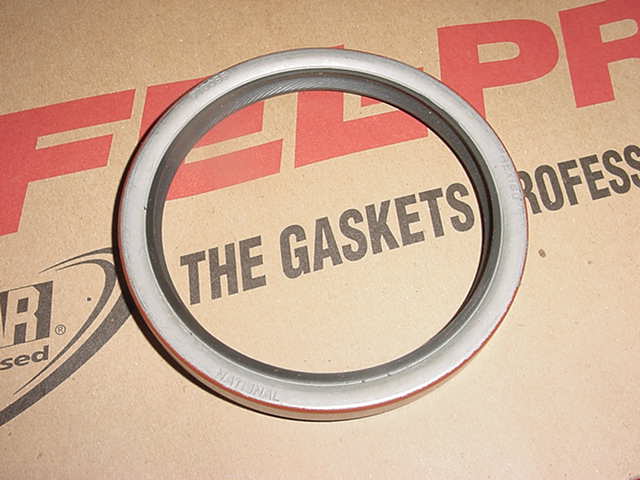

New
main in
|

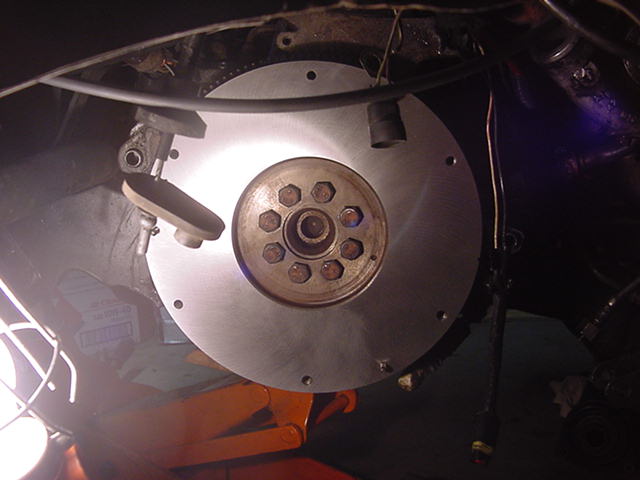

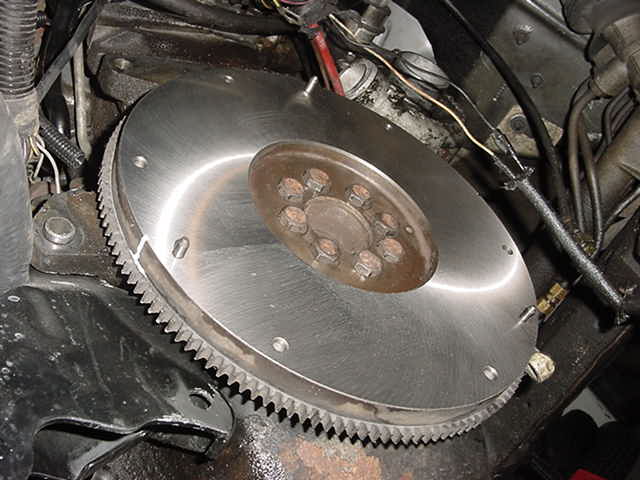

Flywheel
in
|
Flywheel
tight
|
Cleaned
|

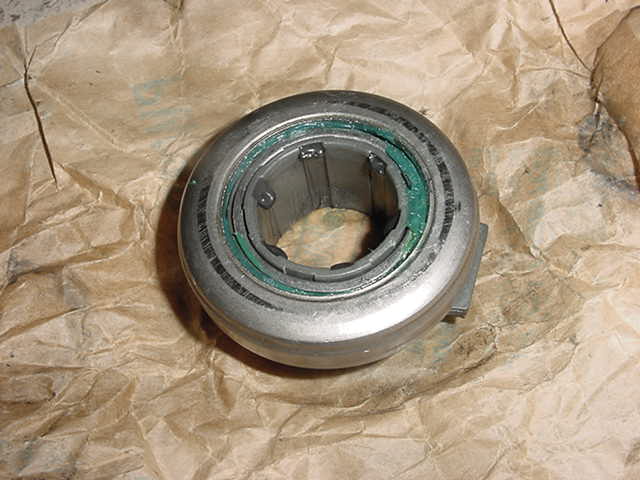

New

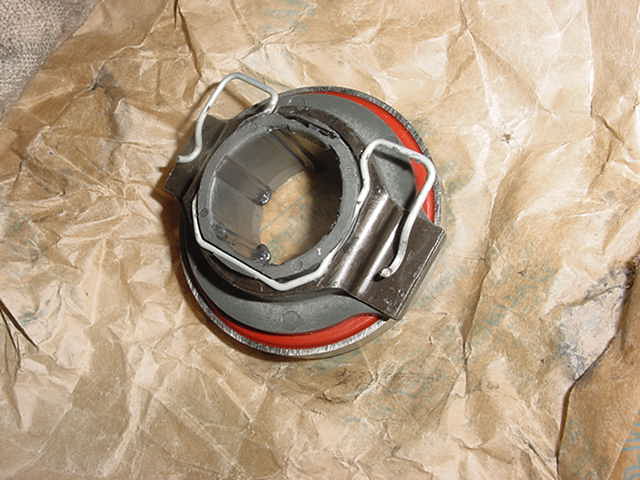

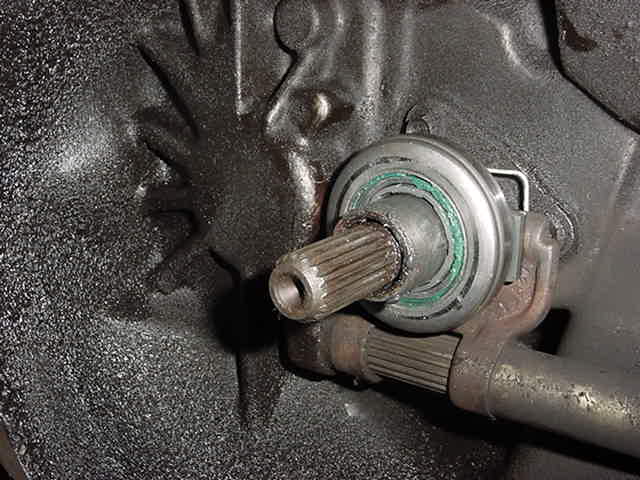

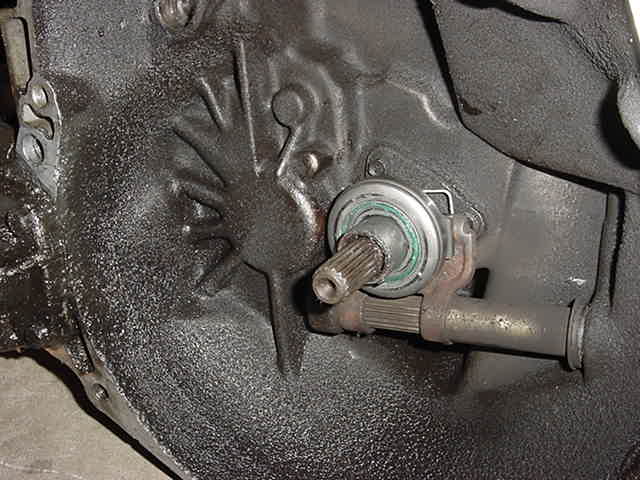

TOB in
|
New
TOB in
|
 |
 |
 |
 |
 |
 |
|

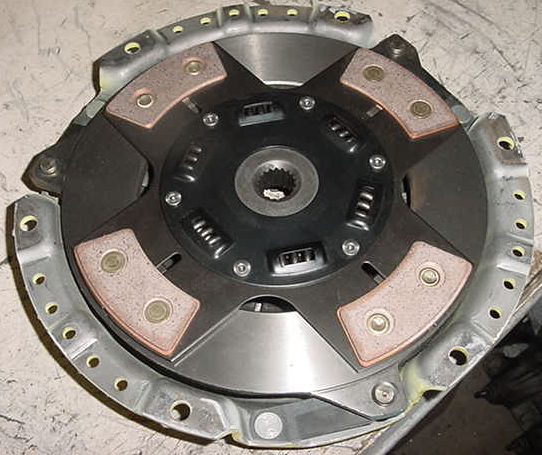

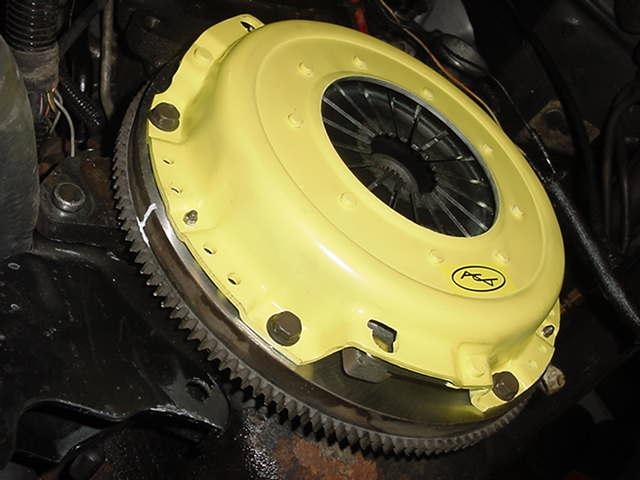

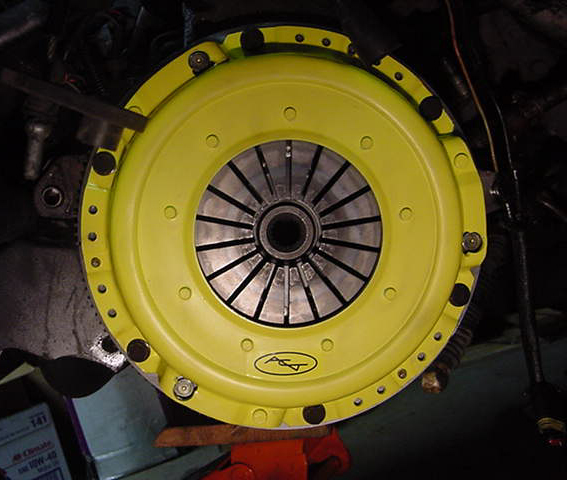

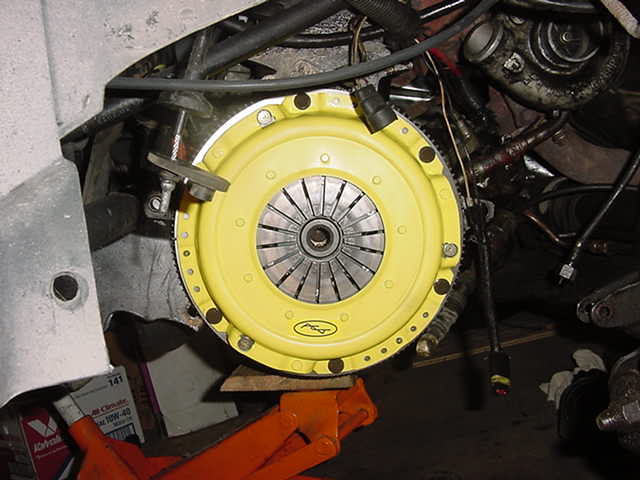

Clutch
in
|
From
afar
|
Close
up
|
|||
 |
 |
 |
|||
